Wichard Marine

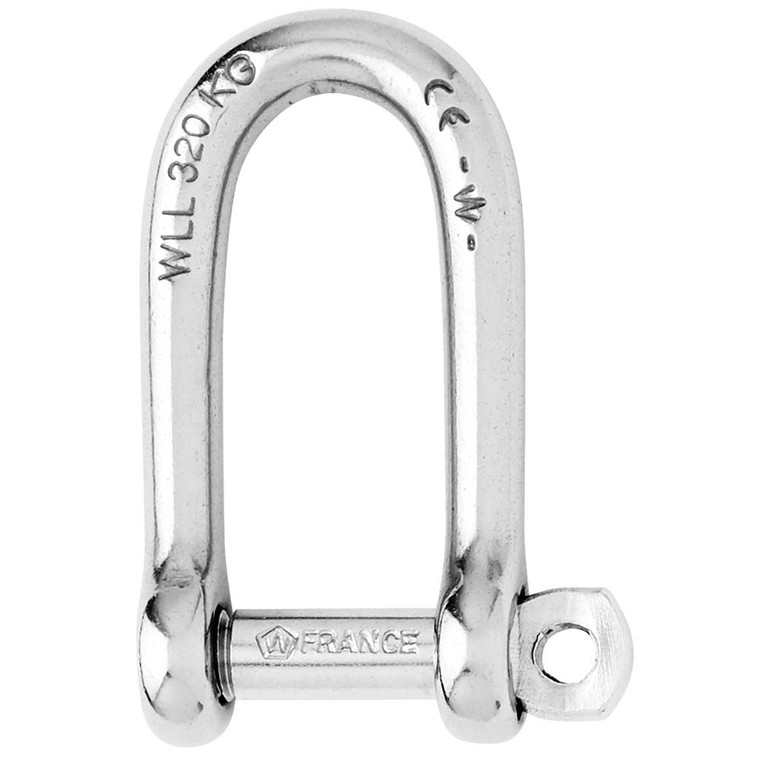

Wichard Self-Locking Long D Shackle - Diameter 8mm - 5/16"
- SKU:
- CW59-IS93098
- UPC:
- 768536012149
- MPN:
- 01214
- Shipping:
- Calculated at Checkout
Description
Self-Locking Long D Shackle - Diameter 8mm - 5/16"
Features:
- Self-locking long shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications
- CE Marking and batch number
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1190
- Breaking load (lb) 5950
- Weight (lb) 0.146
Dimensions (see 2nd image):
- A (inch) 1-49/64"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- F (inch) 2-33/64"
- G (inch) 1-39/64"
Manufacturer : Wichard Marine
Manufacturer Part No : 01214
UPC : 768536012149
