Seastar Pro Pa1315-2 Power Assist Unit 12/24v 15' Harness - PA1315-2

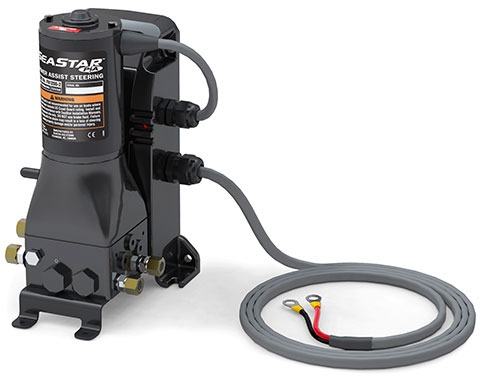

Dometic SeaStar PA1315-2 Power Assist Pro

• Dramatically reduces steering effort
• Wall or Floor mount
• Easy to install
• Return to manual in failure mode
• Suitable for use with autopilots
• 12V or 24V operation
• Wiring harness included

Specifically designed for high torque single engine outboard applications fitted with SeaStar Pro helms, such as performance bass boats.

The SeaStar Power Assist unit can be installed on new SeaStar steering installations or as an easy retro-fit to existing systems.

Suitable for most boat types, the SeaStar Power Assist uses an electronically controlled hydraulic pump to provide on-demand power steering. It is installed into the hydraulic steering circuit between the helm and steering cylinder. The Power Assist unit is powered from the boat’s battery and adjusts automatically to the input voltage (12V or 24V).

The SeaStar Power Assist can be used on boats with multiple engines and rudders, multiple steering stations and autopilots.

If power to the unit is interrupted for any reason, the steering system will automatically return to manual operation without any change to the number of lock-to-lock turns. In this case, the steering will of course be heavier than with the Power Assist activated.
