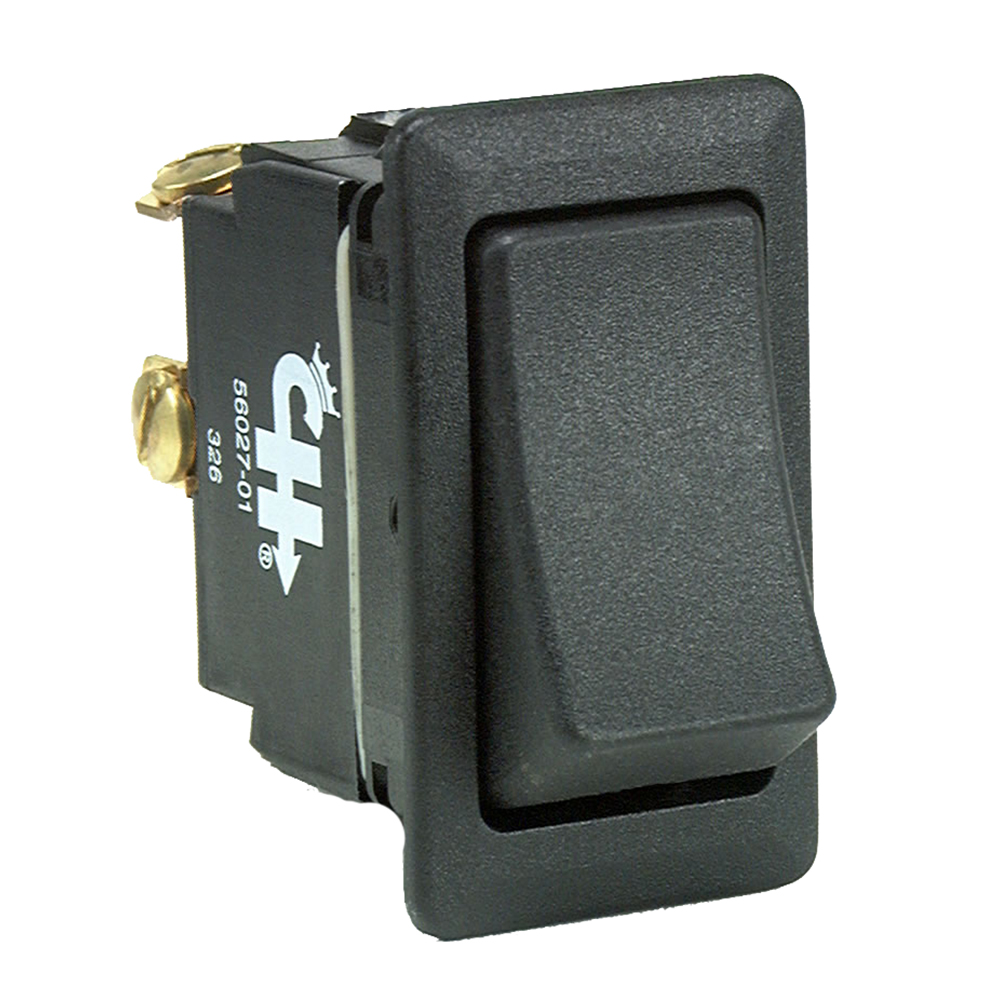

POLY ROCKER SWITCH NON ILLUM. (RK40480)

NON-ILLUMINATED POLY ROCKER SWITCH Permanent contacts, movable contacts, springs, and other mechanical components make up (RK40480). When the switch is pushed from ON to OFF or vice versa, the spring movement tilts the movable contact to connect with the output contacts. This gadget makes it easier to turn off or on the primary power sources for your vessel's electronic devices. It snaps into a standard 7/8 inch x 1 7/16 inch panel slot and is simple to install. This huge rocker switch is made of tough injection-molded nylon polycarbonate and stamped brass, with 1/4 inch blade terminal wire. It resists corrosion and can be in a marine environment for a long time.

Key Features:

• Snaps into a standard 7/8" x 1 7/16" panel slot for simple installation.
• Injection-molded nylon polycarbonate and stamped brass are used to create this robust piece.
• Plastic structure is non-corrosive.
• Brass blade terminals, silver contacts.
• Actuators are black with a black face plate.

Product Details:

• SKU: RK40480
• UPC: 023121404809
• Weight: 0.09 LBS

Switch Function: On-Off-On DPDT, Rated: 20 Amp @ 12v, Non-corrosive plastic construction, Silver contacts, Brass blade terminals. Black actuators with black face plate

This product replaces:

49-40481, 49-40480, RK4048, RK40482, 11-RK40480, 18-1865, 2312140480, 23121404809
