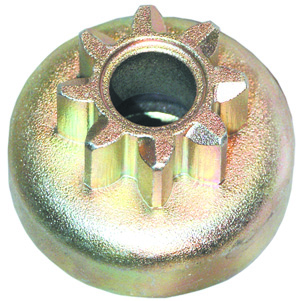

Outboard Starter Drive Gears - ARCO Marine (DV370)

The DV370 drive assembly is the original drive assembly for the Arco 5370 starter, and it features a 9-teeth drive gear for usage with a range of small engines. This drive system suits most outboard motors from 2hp to 115hp in both regular and oversized crankshaft configurations, giving the user maximum versatility.

Key features:

• The Arco Marine Outboard Starter Drive Gears will protect your boat.

• This unit contains a 12-volt/9-tooth drive gear, an O.M.C. starter, and a voltage of 12V/9T.

Specifications:

• Brand: ARCO Marine

• Manufacturer: ARCO Marine

• Manufacturer’s Part Number: DV370

• Product Dimensions: ?6 x 2 x 4 inches

• Item model number: ?DV372

• O.M.C. Outboard Starter

• Drive, Rotation: CCW

• Teeth: 9

• Dimension: Gear Teeth: 9

• Gear OD: 35.8mm

• Gear ID: 13mm

• Rotation: CCW

• OAL: 36.7mm

• # Splines: 6

• Notes: Includes Nut on Back of Drive

• Brief: United Technologies StartersLester 5713, 5714, 5716, 5718, 5766, Others

This product replaces:

57-DV370, 693006003269, 69300600326, DV370, DV-370
