Maretron
Maretron Mid Bulk Cable - 100 Meter - Gray
- SKU:
- CW59-IS47023
- UPC:
- 873804003030
- MPN:
- DG1-100C
- Shipping:
- Free Shipping
Description
Specifications
Overall
Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
Insulation Material: PE (data wires), PVC (power wires)
Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)
Power Pair
Wire: 2x16 (1.29mm) AWG
Resistance/Conductor: 4.1 Ohms/1000 ft max
Max Amperage: 14 Amps Color Code: Red/Black
Data Pair
Wire: 2x20 (0.81mm) (AWG)
Characteristic Impedance: 120 Ohms +/- 10%
Capacitance: 10.75 pF/ft
Color Code: White/Blue
Approvals
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC-61162-3
Manufacturer : Maretron
Manufacturer Part No : DG1-100C
UPC : 873804003030
View AllClose
Overall
Power Pair
Data Pair
Approvals
Manufacturer : Maretron
Manufacturer Part No : DG1-100C
UPC : 873804003030
Related Products

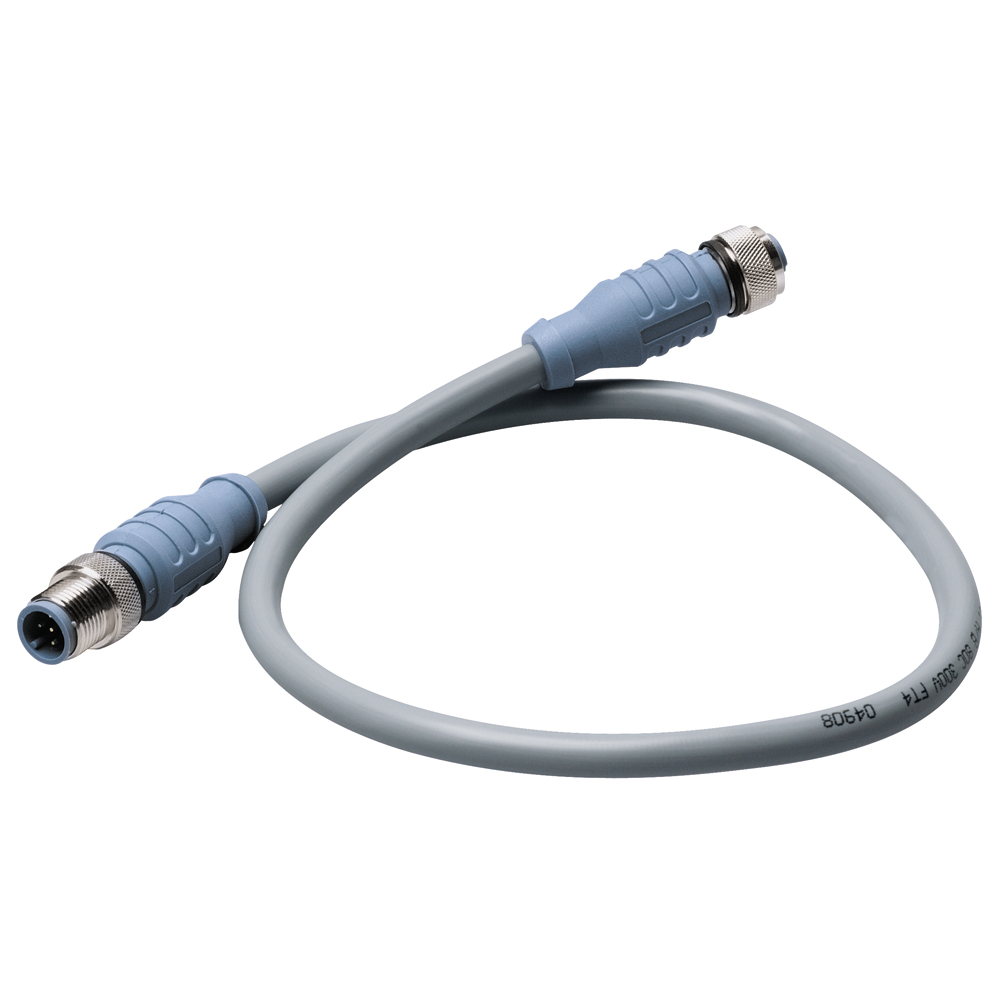

Maretron Mid Double-Ended Cordset - 1 Meter - Gray
