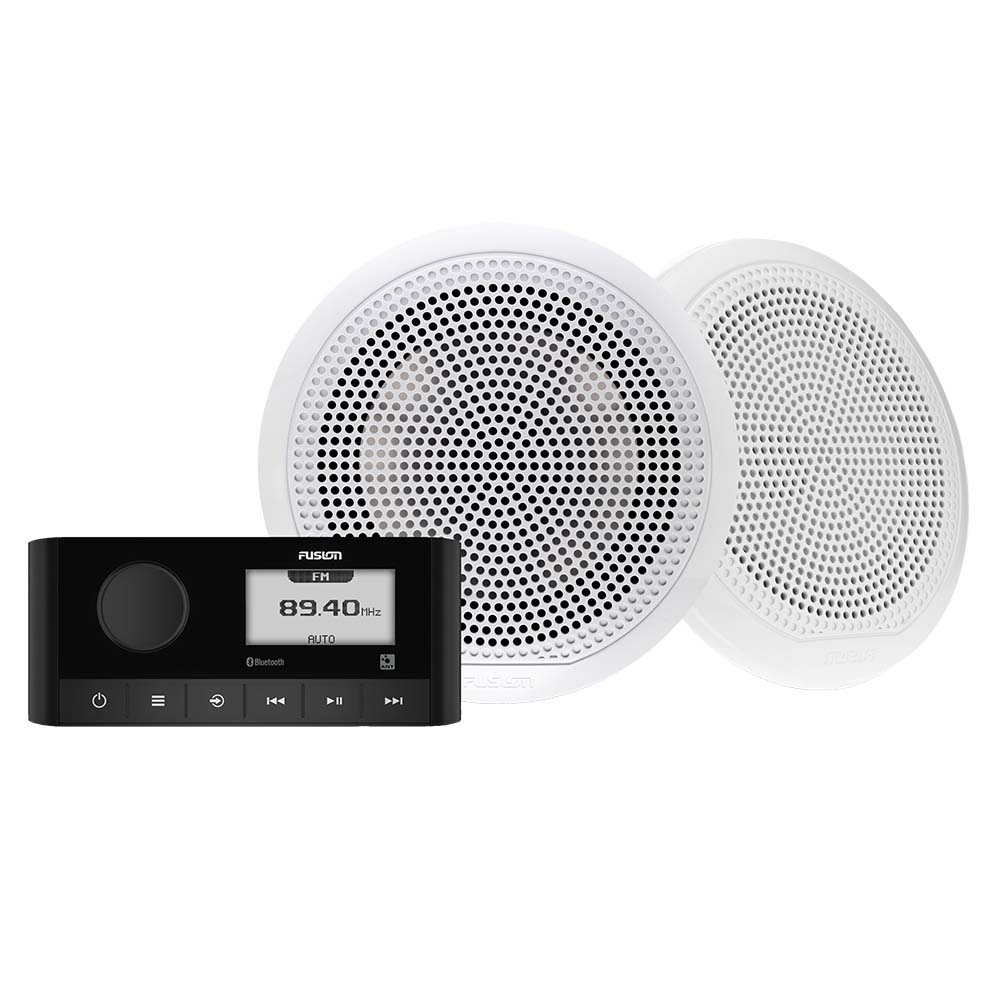

Fusion MS-RA60 & 6.5" EL Sports Speaker Kit - Grey Speakers
- SKU:
- CW59-IS98899
- UPC:
- 753759314200
- MPN:
- 010-02405-61
- Shipping:
- Free Shipping
Description
MS-RA60 & 6.5" EL Sports Speaker Kit - Grey Speakers
Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit put the perfect soundtrack at your fingertips.
Features:
- Your marine stereo and both speakers come ready to install
- Easily control music from your compatible Garmin MFD1, smart device, or Garmin watch
- Built-in Class D amplifier brings aboard higher efficiency and greater output
- Multi-Zone™ Technology makes you the captain of two separate audio zones
- Conveniently update software via BLUETOOTH® technology2 from the Fusion-Link™ app on your compatible smart device
- Grow your audio system with compatible Fusion speakers, subwoofers, and amplifiers
IPX6 & IPX7 Ingress Protection
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
Modern Design & Aesthetics
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
Stereo Specifications:
- Physical Dimensions (H x W x D): 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)
- Weight: MS-RA60: 11.1 oz (316 g)
- Water Rating: IPX6 and IPX7 (front panel only, when properly installed)
- Power Input: 10.8-16 VDC
- Operating Temperature Range: 32° to 122° F (0° to 50° C)
- Current (max.): 15 A
- Peak Power: MS-RA210: 200 W
- Rated Power Output (4 ohm): 22 W RMS x 4 @ 14.4 V input < 10% THD
- Multi-Zone™ Technology: 2 zones
- 4 speaker connections (2 zones amplified)
- Speaker: 4 speaker connections (2 zones amplified)
- Subwoofer Out: Zone 1 (requires external amplification)
Speaker Specifications:
- Physical Dimensions (Diameter x Depth): 6.93” x 2.32” (176 x 59 mm)
- Water Rating: IP65
- Speaker Size: 6.5"
- Peak Power (watts): 80 W
- RMS Power (watts): 20 W
- Sensitivity (1 watt/1 meter): 88 dB
- Frequency Response: 45 Hz-16 kHz
- Operating Temperature Range: 32° to 122° F (0° to 50° C)
- Cone Material: Polypropylene cone with cloth surround
- Mounting Diameter Clearance: 5.12" (130 mm)
- Mounting Depth Clearance: 1.69" (43 mm)
- Speaker Color (2): Gray
In the Box:
- MS-RA60 marine stereo
- One pair of EL Series classic white marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 meters) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”)) Designed and made in the U.S.A.
Manufacturer : Fusion
Manufacturer Part No : 010-02405-61
UPC : 753759314200
