Blue Sea Systems

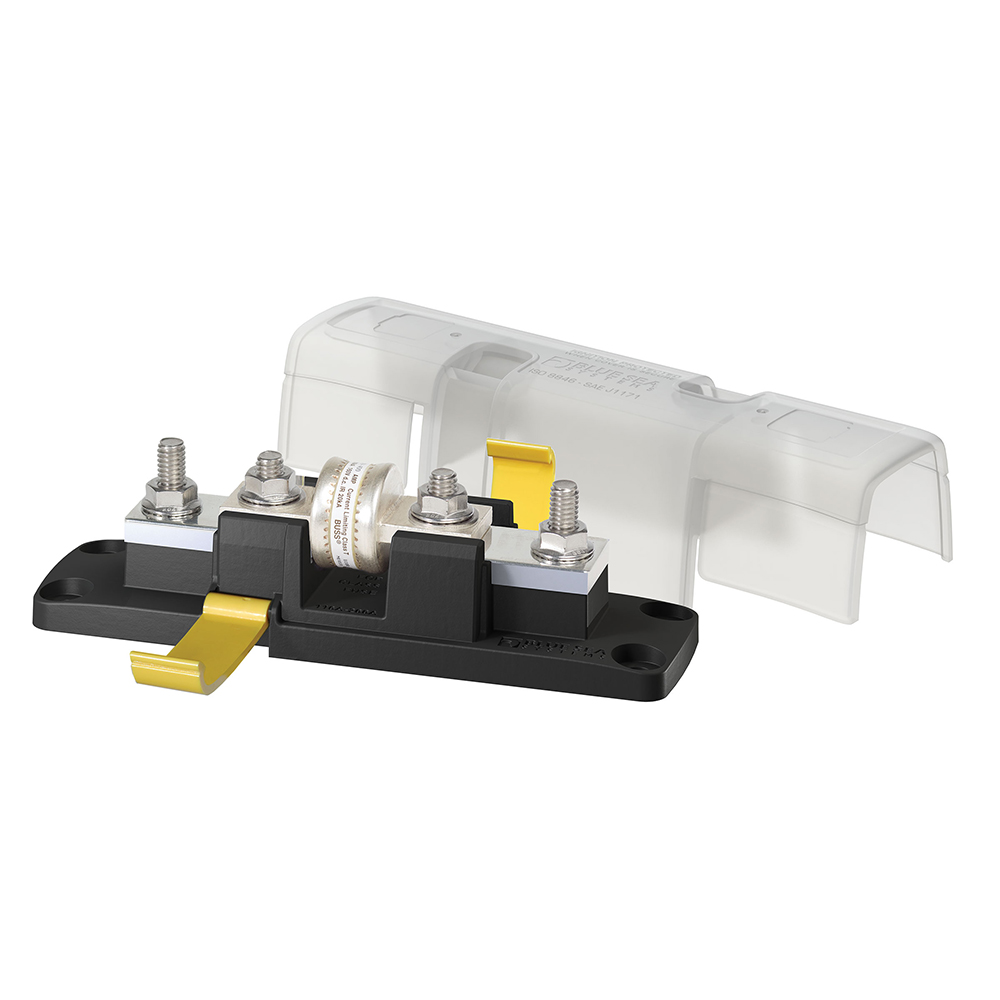

Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A
- SKU:
- CW59-IS64355
- UPC:
- 632085550219
- MPN:
- 5502100
- Shipping:
- Calculated at Checkout
Description
Class T Fuse Block with Insulating Cover - 225 to 400A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
Technical Specifications:
- Cable Size: Up to 4/0 AWG
- Ignition Protected: Yes
- Maximum Amperage: 320A
- Maximum Voltage: 160V DC
- Fuse Mounting Blocks: Tin-Plated Copper
- Terminal Stud Size: 5/16"-18 (M8)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 5502100
UPC : 632085550219
