Blue Sea Systems

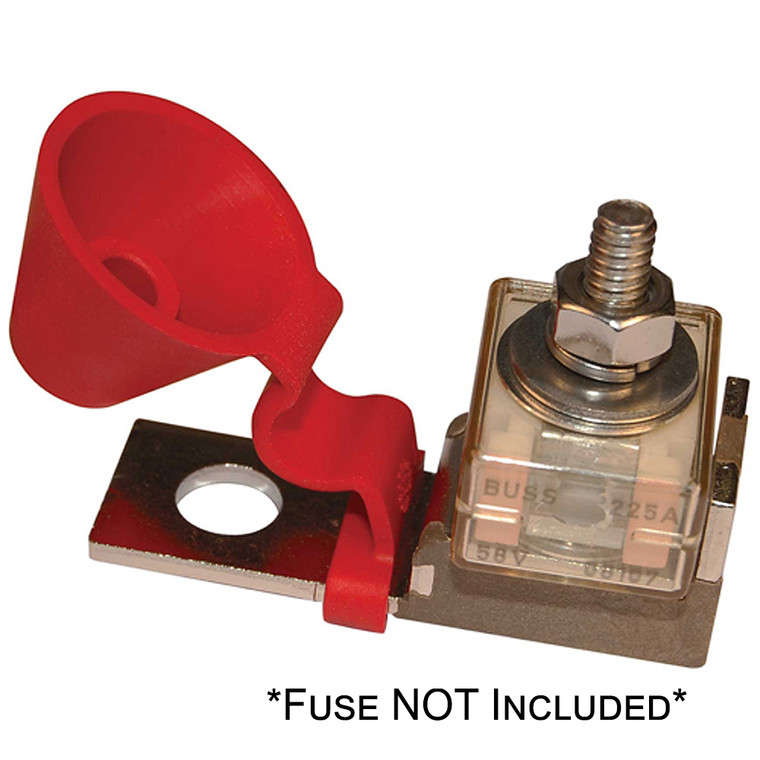

Blue Sea 5191 Terminal Fuse Block 30-300AMP
- SKU:
- SW-B6Z5191BSS
- UPC:
- 632085051914
- MPN:
- 5191
- Shipping:
- Calculated at Checkout
Description
Terminal Fuse Black
- New isolated stud design uses standard 5/16" hardware and permits stacking of terminals
- Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Weatherproof-suitable for small open-cockpit boats and other harsh environments
- Insulating cap prevents accidental shorts
- Use 5/16" or 3/8" ring terminal
Specifications
- Ignition Protected: No
- Maximum Amperage: 300a
- Maximum Voltage: 58v DC
- Terminal Stud: M8 (5/16")
- Maximum Torque: 75 in-lb
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 5191
UPC : 632085051914
