Blue Sea Systems

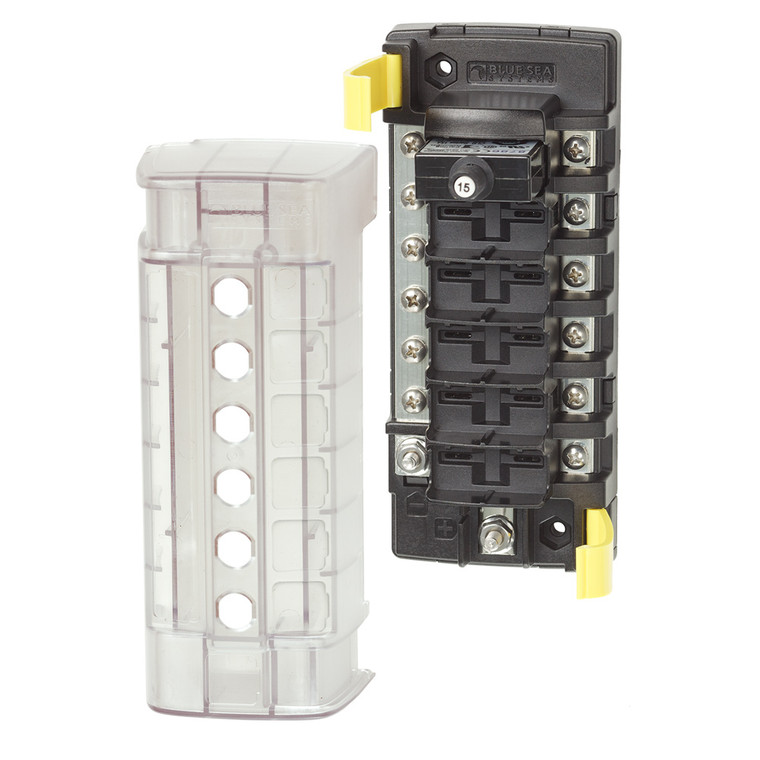

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus
- SKU:
- WTBSS5052
- UPC:
- 632085050528
- MPN:
- 5052
- Shipping:
- Calculated at Checkout
Description
ST CLB Circuit Breaker Block - 6 Position w/Negative Bus
Features
Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)
Manufacturer : Blue Sea Systems
Manufacturer Part No : 5052
UPC : 632085050528
View AllClose
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 5052
UPC : 632085050528
Related Products

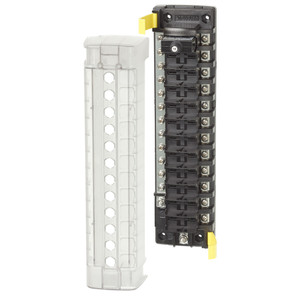

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
